HC-80™
Application
Pet Aftercare
Capacity
80 lbs (36kg)
Process
Alkaline Hydrolysis

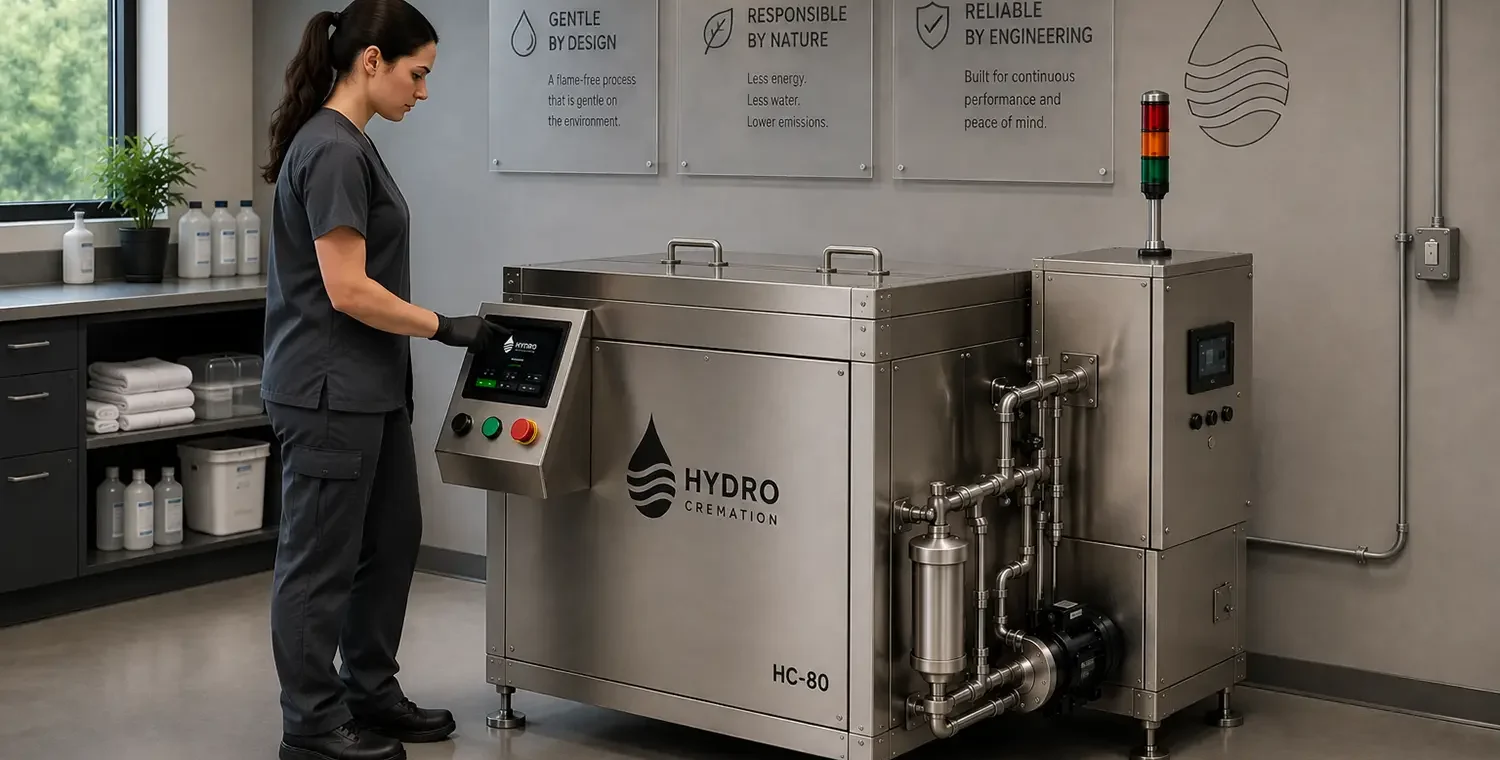

The HC-80™ is a next-generation immersion-based hydrocremation system purpose-built for pet aftercare operations. Combining automated process
control, ergonomic loading and unloading, integrated agitation and circulation technology, and simplified maintenance access, the HC-80 delivers
a safer, more consistent, and more efficient hydrocremation solution for small- to medium-volume aftercare providers
KEY FEATURES
- Automated Water Fill &
- Level Management
- Recipe-Driven Automated Processing
- Automated Chemical Dosing Capability
- Pneumatic Clamshell Lid System
- Automated Platform Lift & Agitation
- Integrated Circulation & Turbulation System
- Automated Evacuation & Cleaning Functions
- Touchscreen PLC/HMI Controls
- Process Monitoring & Data Logging
- Remote Monitoring & Diagnostic Capability
- Industrial 304 Stainless Steel Construction
- Holistic Analysis Phase
- Agile Methodologies Implementation
- Robust Project Governance Framework
- Layered Communication Strategy
- Established Clear Communication Channels
OPERATOR BENEFITS
- Improved Ergonomics
Reduces manual handling through automated loading, agitation, and unloading functions, improving operator safety while minimizing physical strain during daily operation. - Consistent Results
Programmable PLC-controlled process recipes deliver repeatable cycle parameters, ensuring reliable, consistent HydroCremation™ performance from one process to the next - Simplified Maintenance
Service-accessible mechanical and electrical components provide convenient access for routine inspection, preventive maintenance, and faster troubleshooting when required. - Future Ready
Modern PLC/HMI architecture supports remote monitoring, process reporting, software updates, and future feature enhancements as operational requirements evolve.
TECHNICAL SPECIFICATIONS
Construction 304 Stainless Steel
Usable Processing Area 30”L × 15”W × 18”D (762 × 381 × 457mm)
Tank Size 80-100 Gallons (303-379 L)
Load Capacity 80 lbs (36 kg), including carrier
Heating System 18 kW Electric Heating
Pump System .75 HP Stainless Steel Process Pump
Controls PLC Automation with Touchscreen HMI
Electrical Requirements 240V / Single-Phase / 60 Hz
Utilities Required Water, Electricity, Compressed Air, Ventilation, Sewer Connection
MODERN OPERATING INTERFACE
Industrial equipment shouldn’t require an engineering degree to operate.
The HC-80™ touchscreen PLC/HMI has been designed around modern user experience (UX) principles, presenting operators with a clean, intuitive interface that simplifies daily operation while providing immediate access to system status, process controls, diagnostics, and maintenance functions.
By reducing complexity and presenting only the information needed at the appropriate time, the HC-80™ helps shorten training, improve operational consistency, and increase user confidence. As new capabilities are introduced, the software platform is designed to evolve through future enhancements and expanded functionality.
Ready to Learn More?
Talk with us about the HC-80 and whether it’s the right fit for your operation.
